Digital whiteboards can be used by instructors and students to enable authentic, real-time annotations in much the same way whiteboards or blackboard are used for demonstrating mathematical formulas and scientific equations during a lecture in the traditional classroom. This article reviews steps for sharing digital input on whiteboards associated with the Zoom and Webex desktop clients.

Use your iPad or iPhone to share with a whiteboard with the Zoom desktop client

Using an iPad or iPhone as an extension of a Zoom meeting can facilitate real-time annotation and screen recording during an online class session. Zoom allows you to share wirelessly for both Mac and PC, using iOS Screen Mirroring, or you can connect your iOS device to your Mac computer with a cable to share. You can also share your entire iOS device screen using Screen Sharing on iOS 11 or later.

Top

Share your screen with screen mirroring

Prerequisites for screen mirroring:

• Zoom client for Mac or Windows 3.5.27094.0918 or later.
• Computer and iOS device on the same network.
• Install the plug-in for sharing iPhone/iPad.

  • You will be prompted to download this the first time you choose to share your iOS device via Airplay, or you can download it manually from the Download Center.
• iPhone 4 or later; iPad; iPad mini, 4^th generation or later.
• Network and computer firewalls allowing Airplay access – Read more.

NOTE: Some types of videos cannot be shared when using Screen Mirroring.

1. In your Zoom Client Meeting, click Share Screen.
2. Choose iPhone/iPad. Optional: If you would like to share your phone audio into the meeting, check Share computer sound.
3. Click Share.



4. If prompted, choose to install the plug-in.

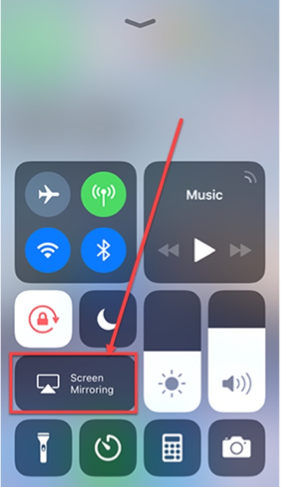

5. On your iPad, swipe down from the upper right to access the control center. Tap Screen Mirroring.

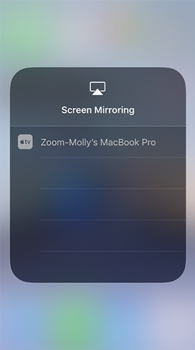

6. Choose the Zoom-your computer option.



7. Your iPad/iPhone is now shared in the meeting. Tap anywhere on the periphery of the Screen Mirroring box to return to your iPad desktop.
8. Start the same meeting on your iPad/iPhone, if needed.
   NOTE: If you have difficulty connecting by this method, it is recommended to use the wired connection (option 1B0, or contact the Service Desk.

Top

Share your screen with a wired connection

Prerequisites for wired sharing:

• Mac OS 10.10 or later.
• Zoom client for Mac 4.0.352995.0605 or later.
• iOS device running iOS8 or later.
• Lightning cable.

Steps:

1. In your Zoom meeting, click Share Screen.
2. Choose iPhone/iPad.
3. Click Share.
4. Attach your iPad/iPhone with a wired connection.
5. You will get an Install Plugin prompt. Allow plugin to install.
6. A display confirms the network, your name and the name of your Zoom client. Start the same meeting on your iPad/iPhone, if needed.
7. Optional: If you would like to share your phone audio into the meeting, check Share computer sound.
8. Click Share Screen.
   NOTE: Connect your iPhone or iPad via cable. This can  be done before you begin the meeting.  If prompted on the iOS device, select Trust.
9. Start the same meeting. Your iPad/iPhone is now shared into the same meeting. You must select, on the iPad, what to share. See Step 2.

Top

iPad/iPhone screen sharing the iPad whiteboard in the meeting

Whether you use wired connections or Airplay connections, the iPad/iPhone also has settings to allow the entire surface of the mobile device to display in the meeting, instead of just a little window.

1. Open the Zoom app on your device.
2. Make certain that you are logged into the meeting. Your iPad/iPhone will show up in the meeting as a co-host.
3. Chose which type of audio connection, if any, you will be using with this connection.
4. After the audio is selected, your name will appear in the middle of the screen with a spinning spiral. Your mobile device is now connected, but waiting for you to select something to share.
5. Click the Share Content button in the upper right.



6. From the list, select Whiteboard.
7. Start Share window.  A pop-up window notifies you that other shares will be stopped if you continue. Click Yes. This shares the iPad with all others in the meeting. You can allow others to annotate. Saving is in the lower right.

Top

Tips for successful whiteboard interactive lessons using Zoom iPad/iPhone

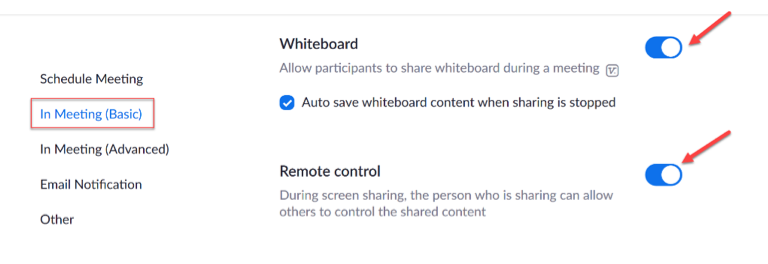

Update your settings – Go to umd.zoom.us and update the Whiteboard settings so that participants can easily share on the Whiteboard. These settings can be changed at any time.

• Go to umd.zoom.us.
• Select Settings > In Meeting (Basic).
• Select Whiteboard and choose allow participants to share on whiteboard. Optional feature is to auto-save.
• Select Remote Control. This setting allows the person who is sharing to allow others to control the shared content (in this case, the whiteboard).



Whiteboards in the Breakout Rooms – Whiteboards cannot be shared in the breakout rooms. Students can complete an assignment on the Whiteboard. One student starts a Whiteboard and allows others to annotate using Remote Control tool in their navigation bar. This can be saved as a picture and can be shared in the main meeting room.
